WiFi Installation Instructions



Compatible devices:  Desktop or Notebook with available M.2 PCIe interface (key E).  Use Windows 11 for best performance.



  Step 1: Preparation

• Ensure your PC has an M.2 interface.

• Ensure your the antenna cables in the PC support MHF4 (or IPEX4) connectorsHF4 (or IPEX4) connectors

• Turn off PC and carefully find targeted M.2 interface.



  Step 2:  Remove old WiFi module

• Apply gentle and even pressure to disconnect antenna connectors.

• Remove screw that holds the Wi-Fi module in place.

• Save screw as you will need this to install the new card.

• Gently pull module from M.2 interface.



  Step 3: Install the new Wi-Fi Module.

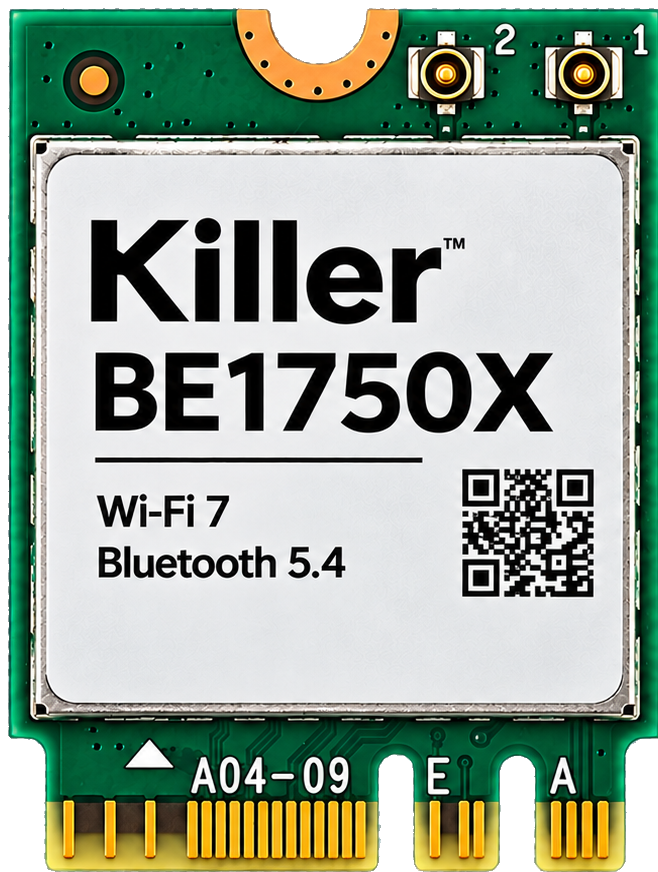

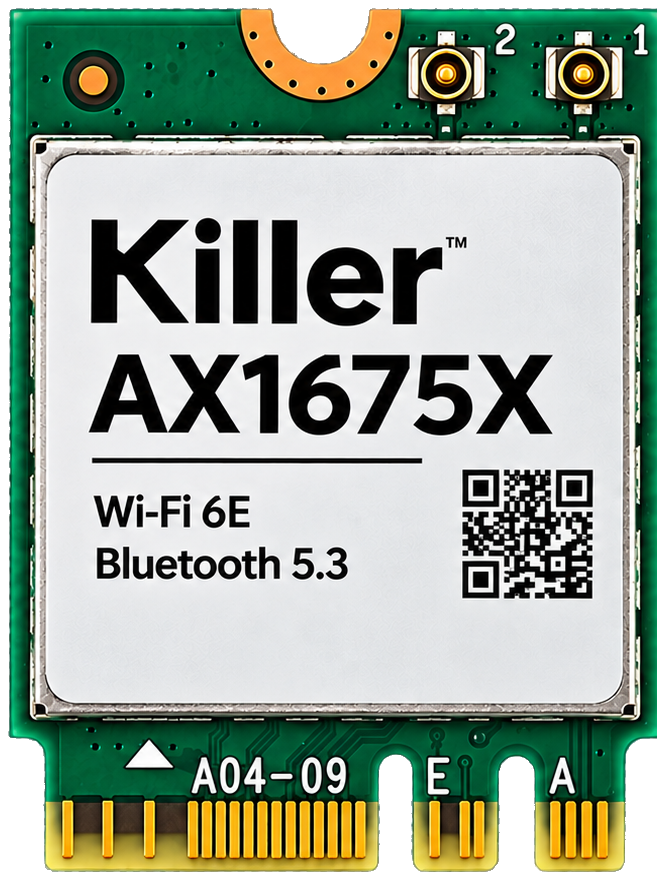

• Insert the Wi-Fi card into the M.2 Wi-Fi slot.

• Reinstall the screw that was previously removed.

• Gently and with even pressure, attach the existing antenna connectors.

• NOTE:  The MHF4 connectors are very small and delicate.  They need to be pushed straight      down to snap on correctly.  They should connect with minimal pressure.

• Close system



  Step 4:

• Power on your system.

• Most systems will automatically install the new drivers.

• If not, please go to www.intel.com and search for the latest Killer Performance Suite
